Extended Bolt Release V3 (EBRv3)
The EBRv3 helps reduce unnecessary hand movement by extending bolt-release access into the trigger well, allowing the shooter to manipulate the bolt release from the right side of the weapon.
The EBRv3 features a one-piece design that directly replaces the standard Mil-Spec bolt catch found in AR-15/M16 lower parts kits. Its ambidextrous-friendly operation makes it a functional upgrade for both right- and left-handed shooters.

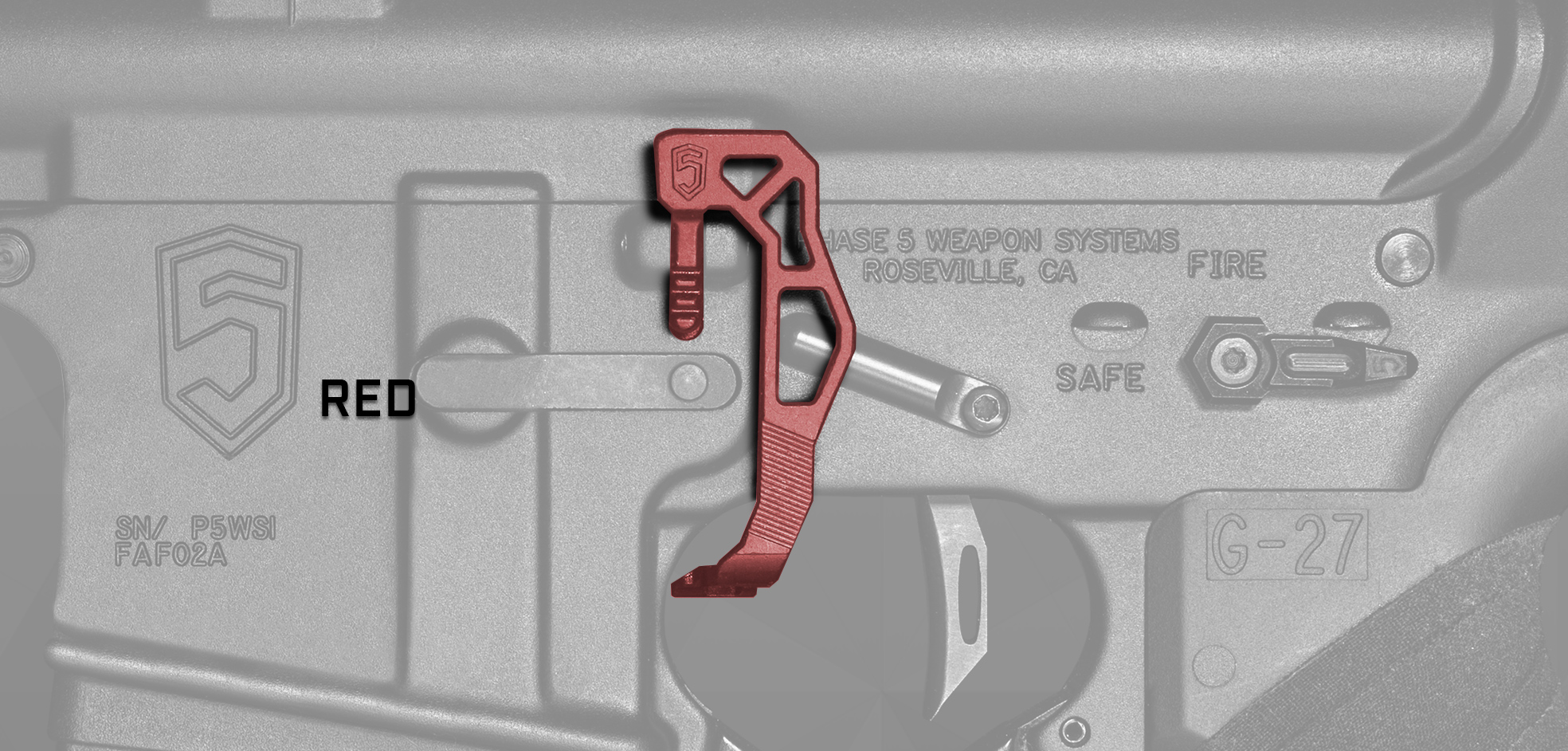

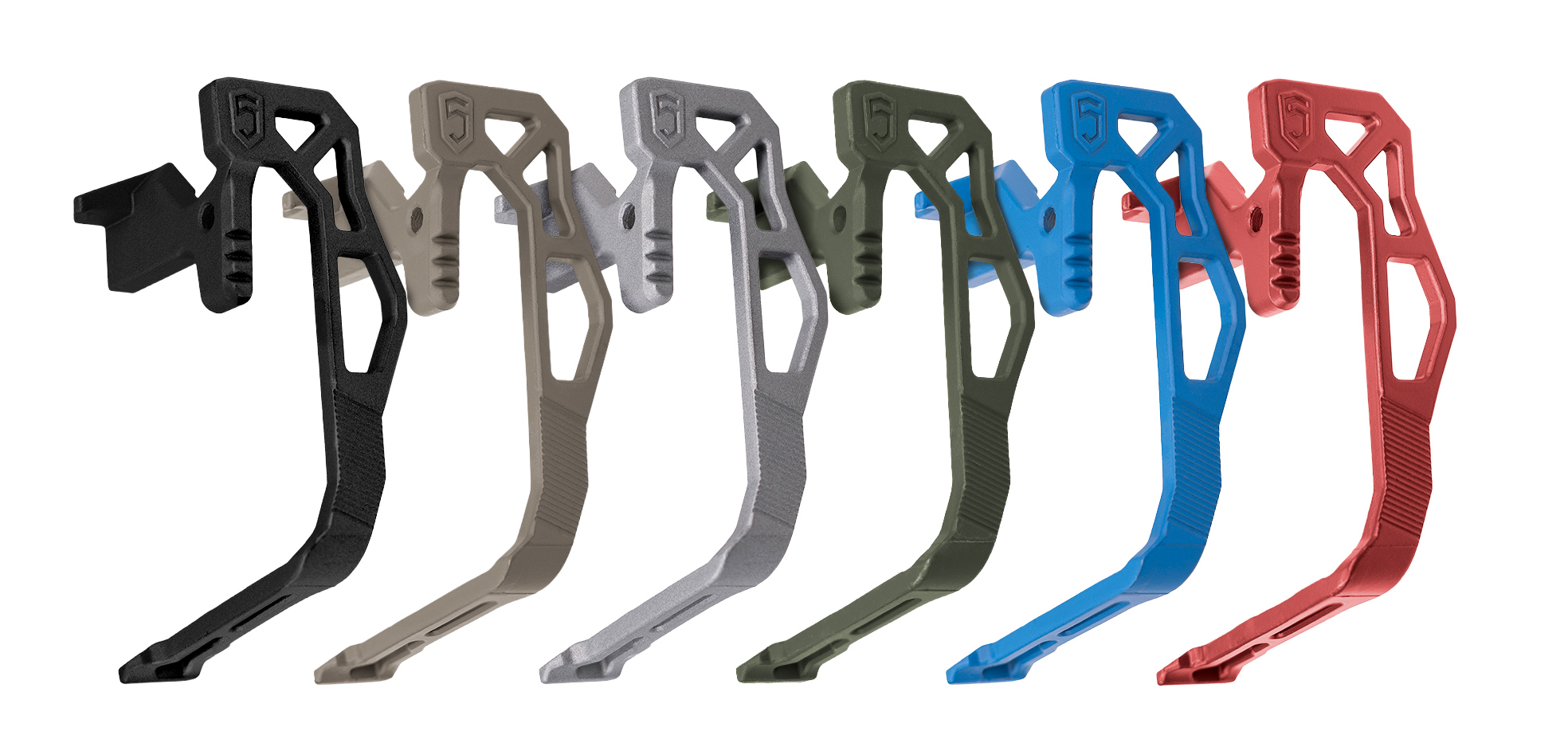

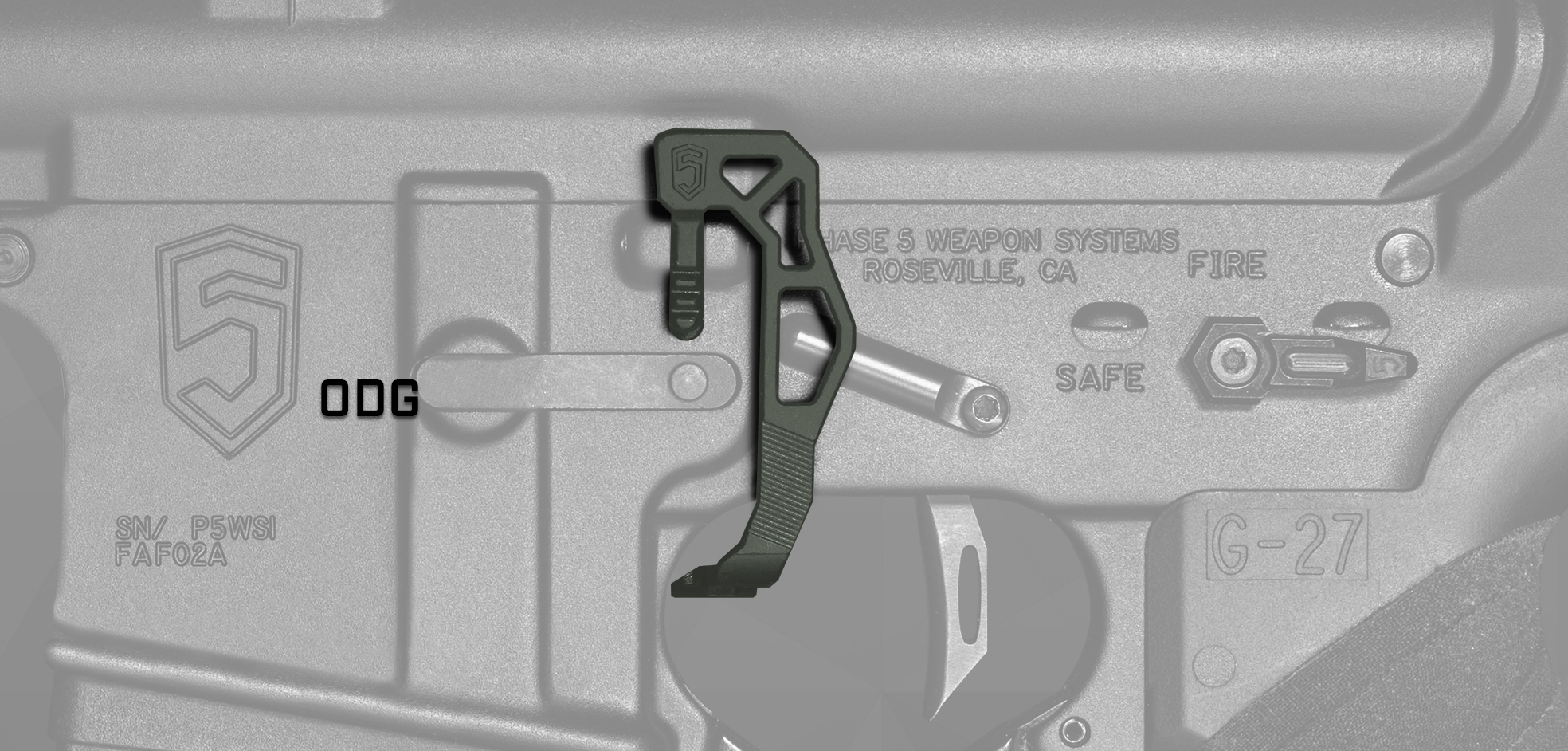

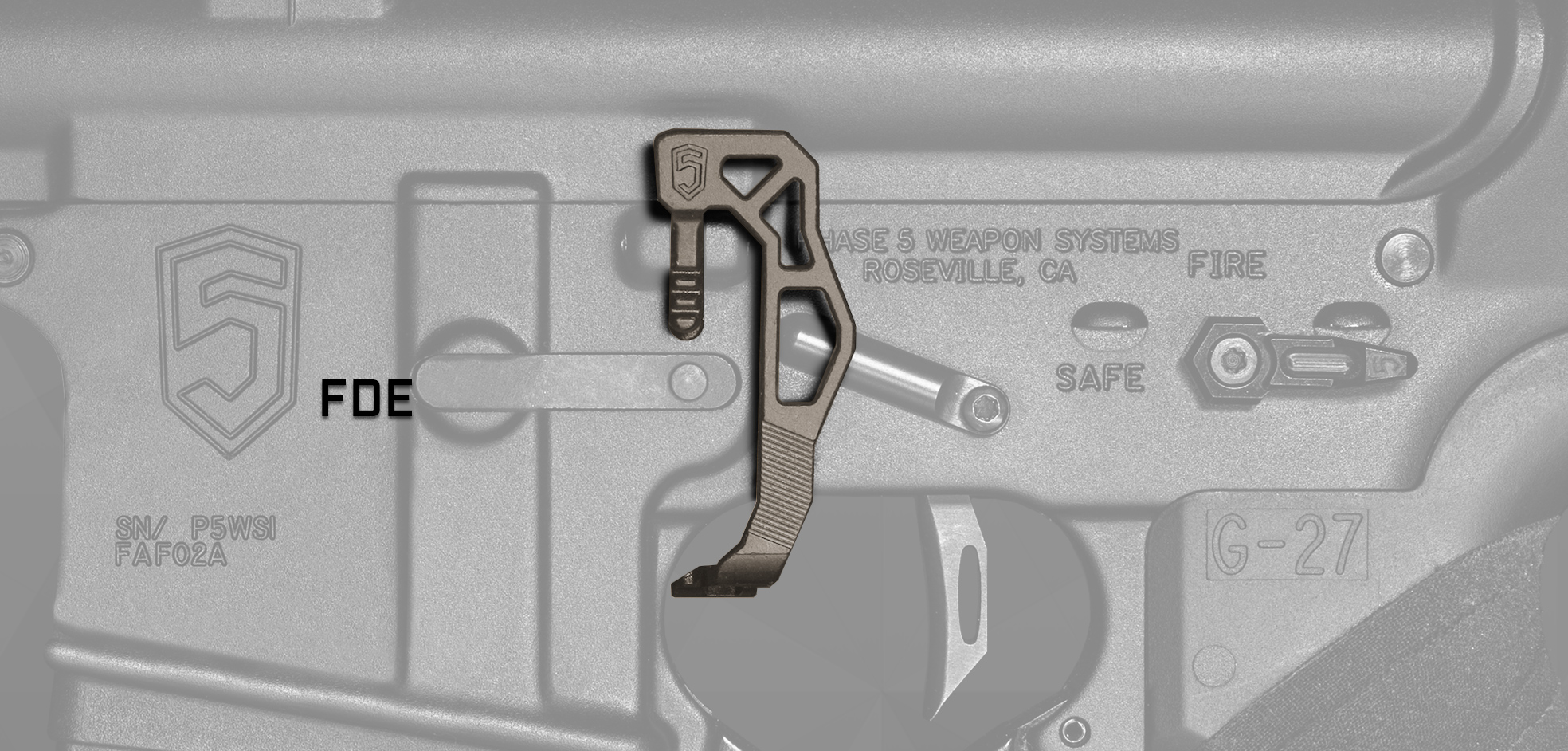

COLOR OPTIONS: Color finishes are Cerakote. Slight marks may be present where components are hung during the coating process. Cerakote may wear at contact points.
COMPATIBILITY: Compatible with nearly all AR-15/M16 platform rifles and pistols that use a standard Mil-Spec bolt catch, including many billet and side-charging receiver configurations. See below for additiona information.
PRODUCT GALLERY

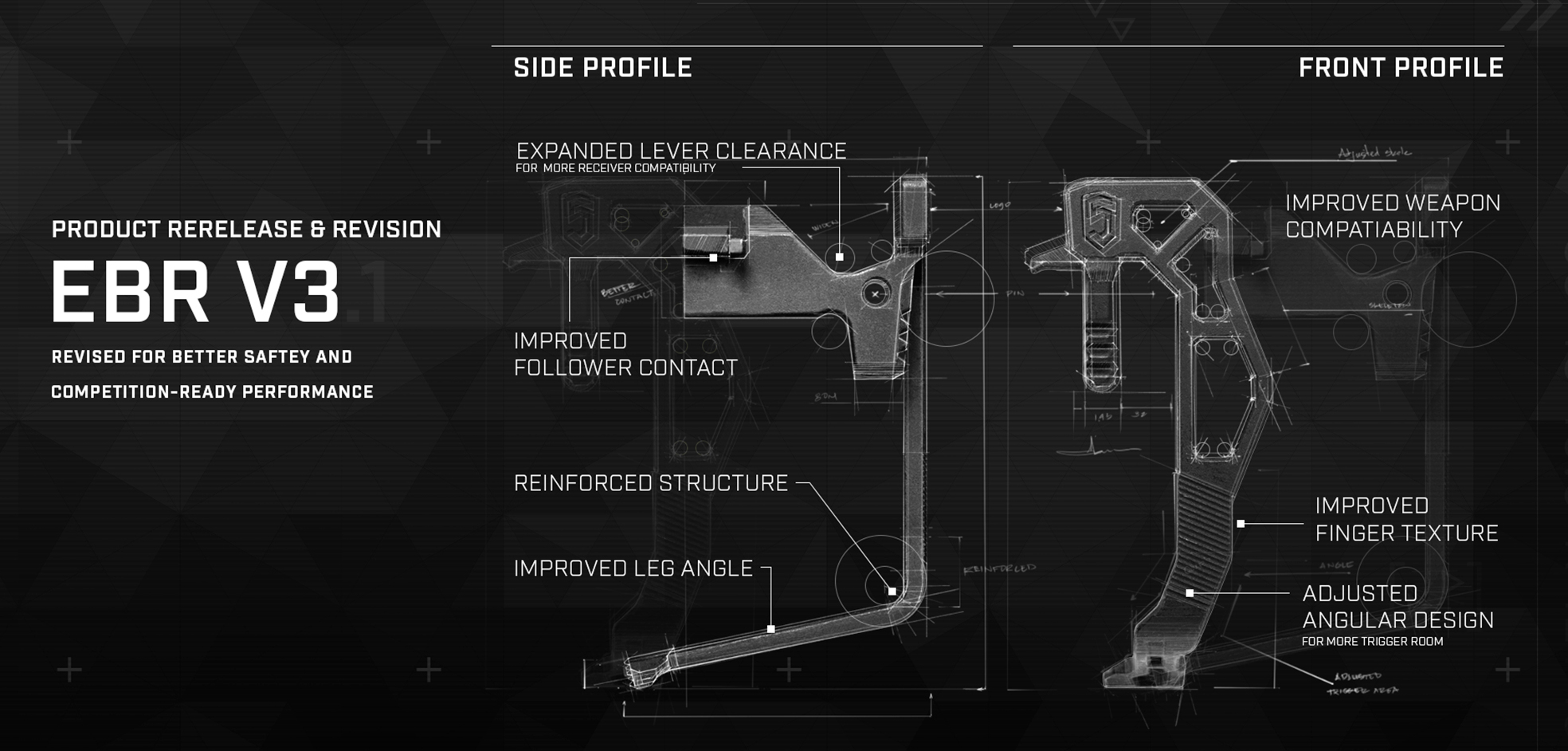

/P5_EBRv5_PRODUCT_UPDATES_2026.jpg)

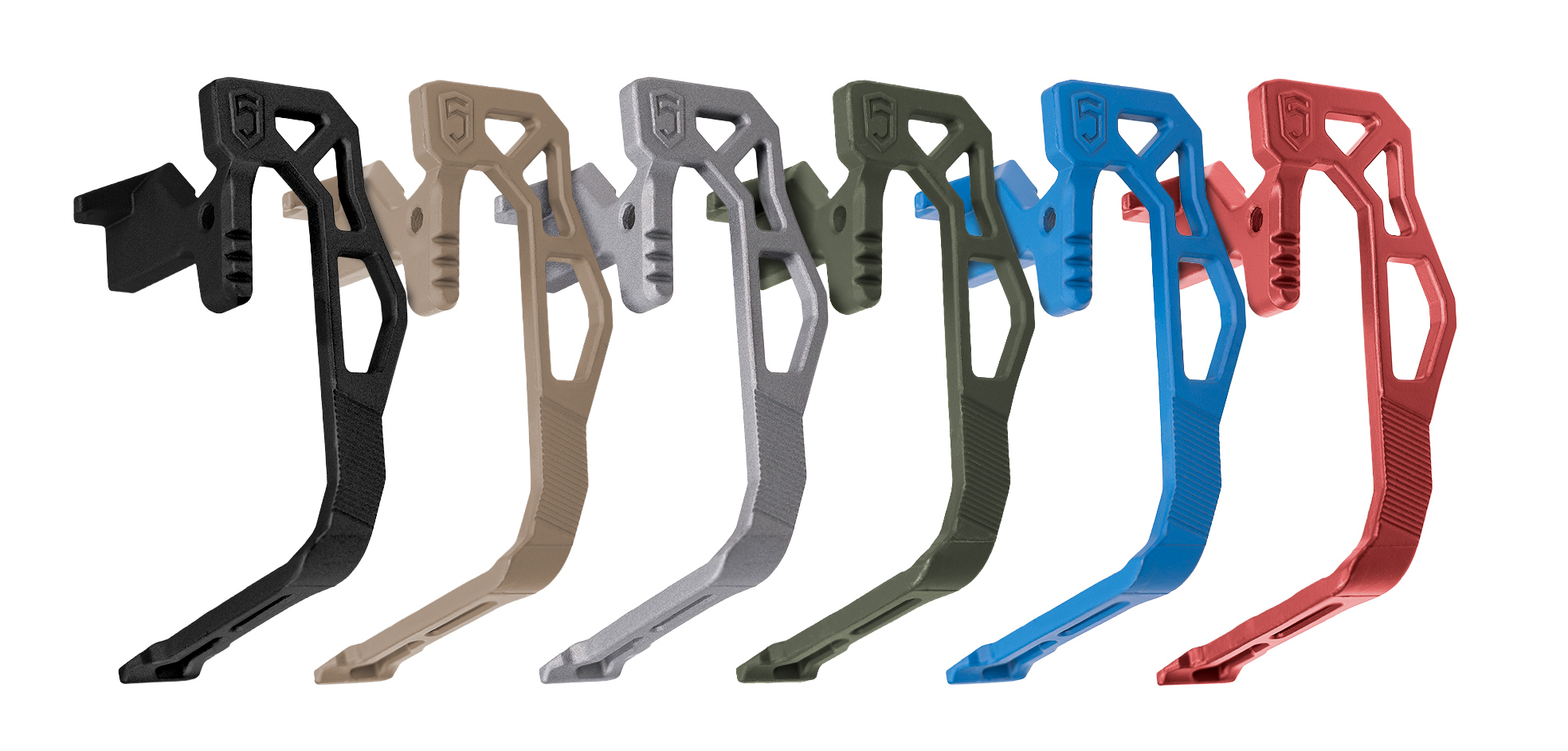

/P5_EBRv5_QTR_PROFILE_ALL_COLORS_2026.jpg)

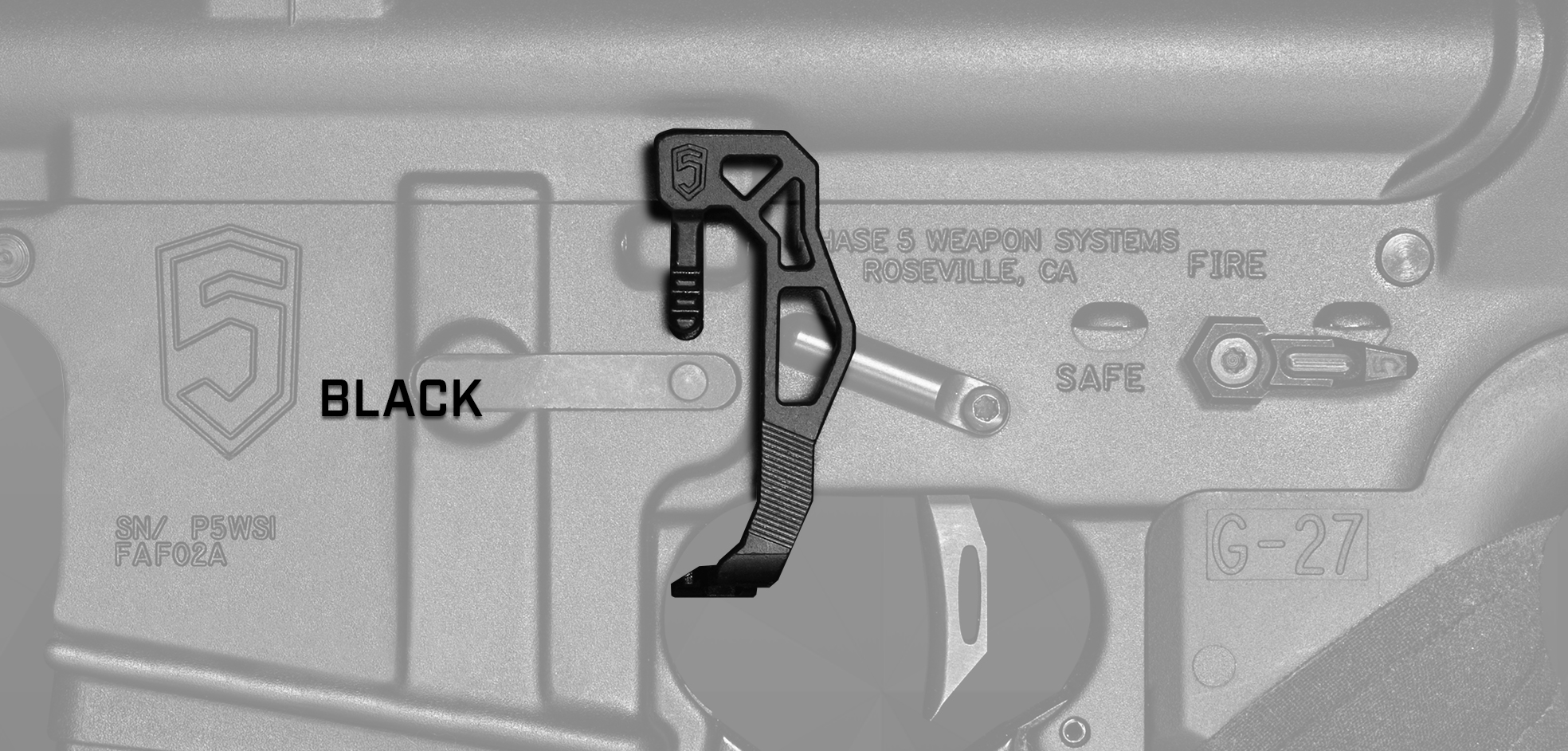

/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_BLK_FRONT_SAMPLE_2026.jpg)

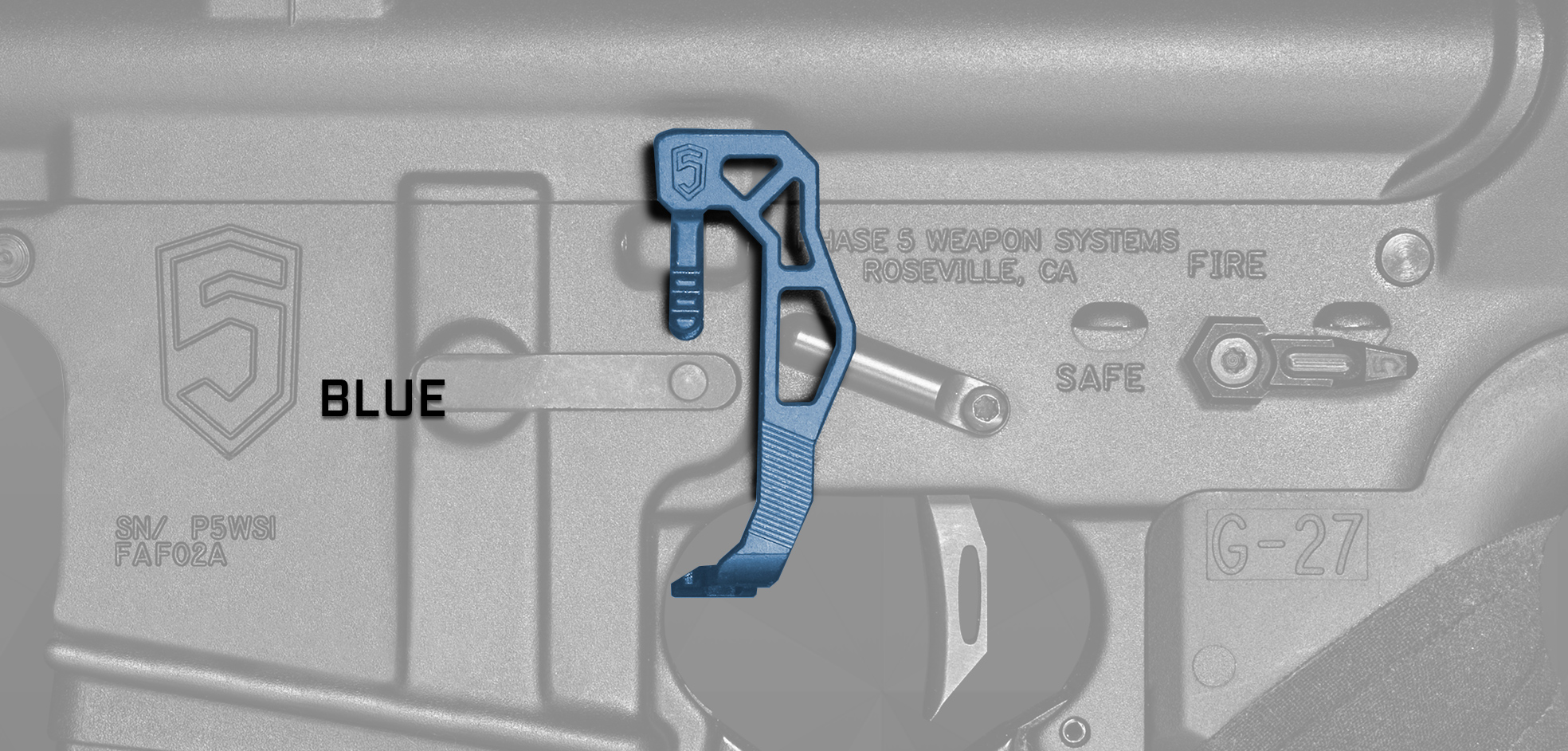

/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_BLU_FRONT_SAMPLE_2026.jpg)

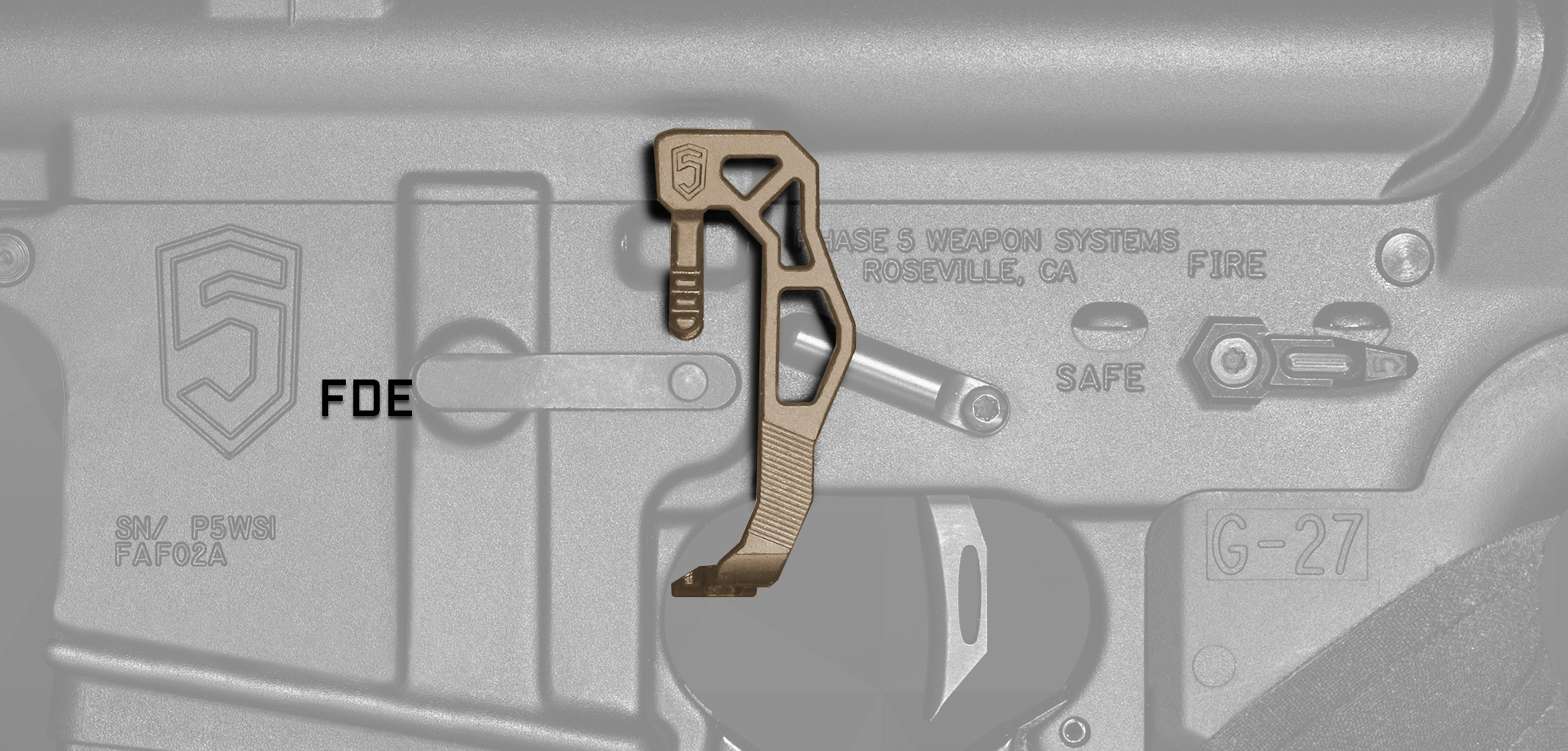

/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_FDE_FRONT_SAMPLE_2026.jpg)

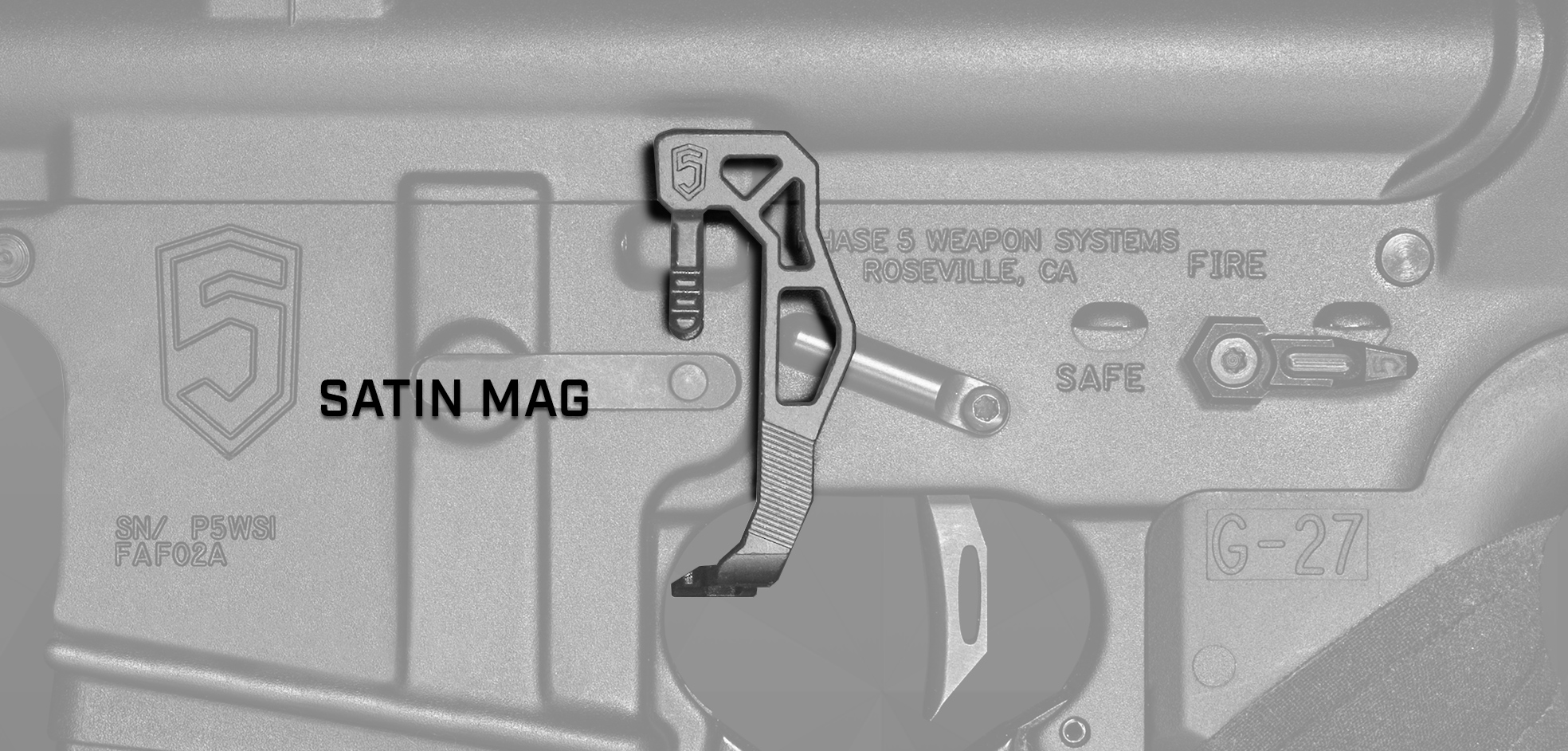

/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_MG_FRONT_SAMPLE_2026.jpg)
/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_ODG_FRONT_SAMPLE_2026.jpg)
/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_RED_FRONT_SAMPLE_2026.jpg)

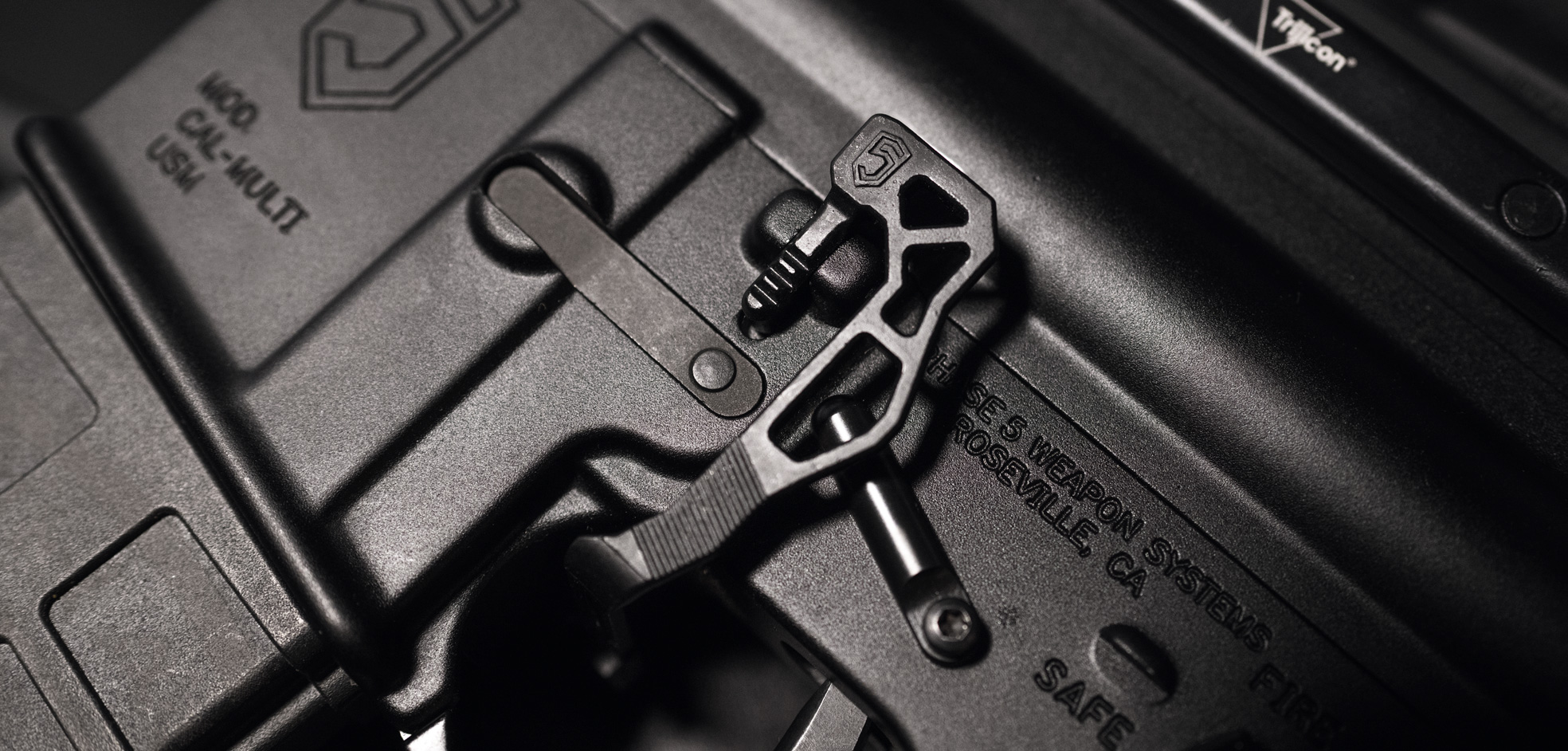

/EBRv5%20ONRIFLE/P5_EBRv5_ONRIFLE_BLK_QTR1_SAMPLE_2026.jpg)
PRODUCT VIDEO
PRODUCT DETAILS
PRODUCT DESCRIPTION

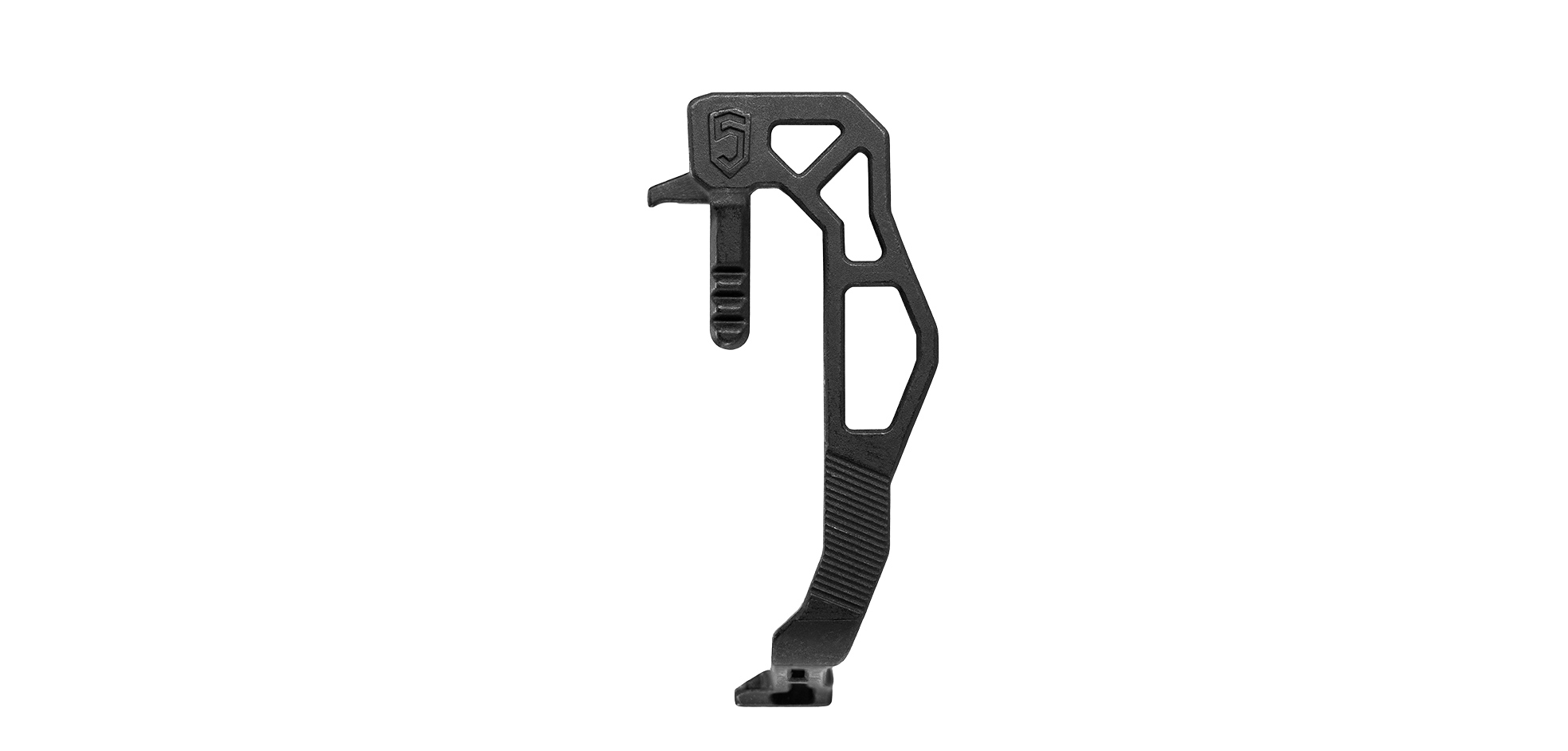

The Phase 5 Extended Bolt Release Version 3 (EBRv3) is a one-piece replacement for the standard Mil-Spec AR-15/M16 bolt catch.
The extended lever provides access from the right side by extending into the trigger well, helping reduce unnecessary hand movement and allowing more efficient bolt-release operation.
The EBRv3 is compatible with Mil-Spec AR-15/M16 receiver sets as well as many billet, side-charging, and left-handed configurations.
BENEFITS
- Heat-treated 8620 steel construction, similar to a Mil-Spec bolt catch.
- Patented monolithic one-piece design with no screws or additional attachment hardware that can loosen during use.
- Low-profile bolt catch design compatible with many aftermarket billet and side-charging upper receivers.
- Grip serrations located at the elbow and end of the Extended Bolt Release lever.
- Improved magazine follower catch.
- Enlarged index-finger bolt-release tab.
ADDITIONAL SPECS
WHAT'S INCLUDED
- (1) EBRv3 Lever
- (1) 3/32" Roll Pin
GSA CONTRACT
COMPATIBILITY
The EBRv3 is compatible with nearly all AR-15/M16 platform rifles and pistols that use a standard Mil-Spec bolt catch.
This includes many side-charging upper receivers and billet receivers that cannot accept bolt-on extended bolt-release levers.
IMPORTANT COMPATIBILITY NOTES

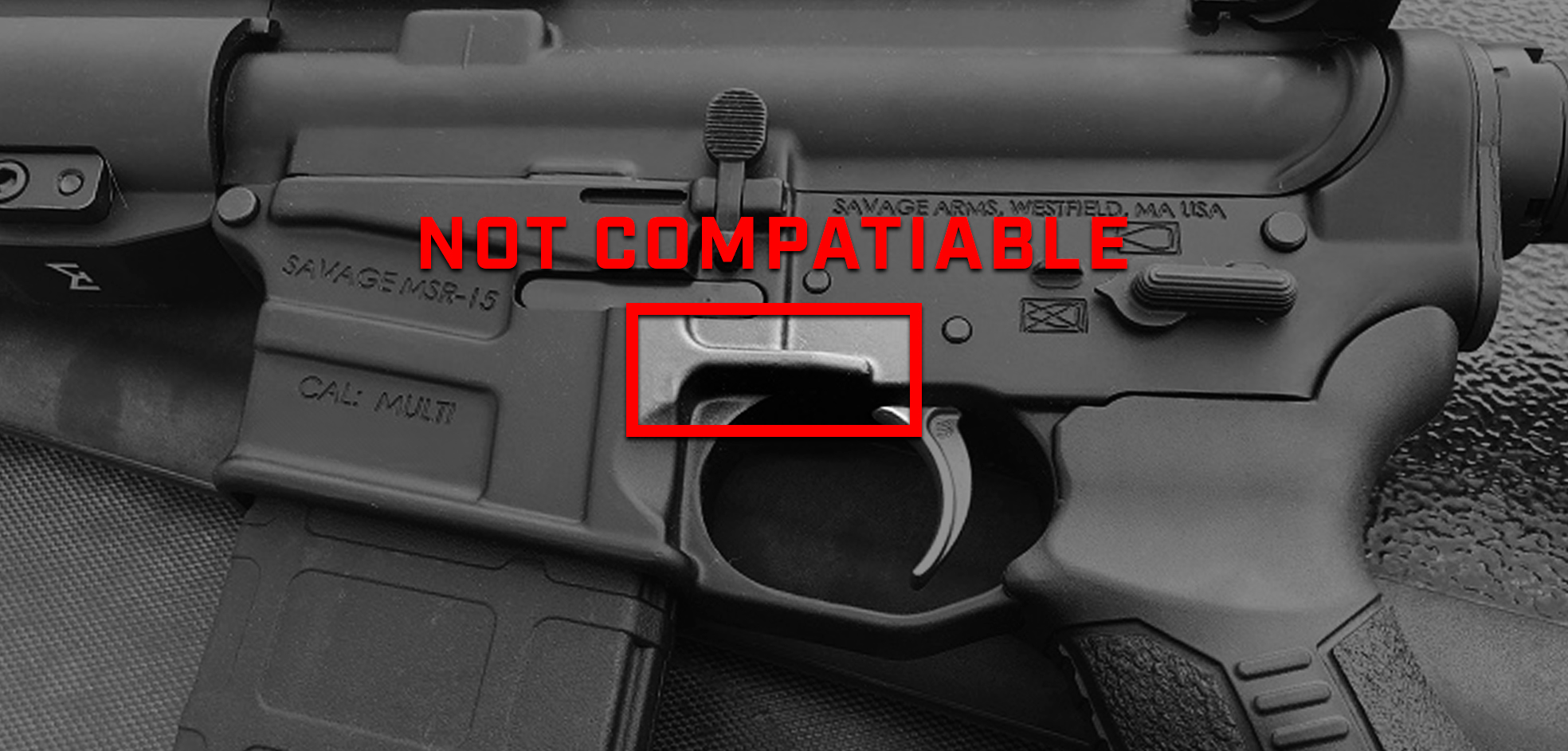

/P5_EBRv5_NOT_COMPATIABLE_2026.jpg)
- Not compatible with rifles using a proprietary or non-standard bolt catch.
- Not compatible with lower receivers that have a raised ridge below the hammer pin and above the trigger area.
- Compatibility may vary with ambidextrous magazine releases.
PLEASE NOTE: Contact Phase 5 with questions regarding specific component combinations.
