Phase 5 // Complete M-LOK Rifle Upper Assembly

Complete 16" M-LOK Rifle Upper Assembly

An upgraded version of the P5T15 Rifle Upper Assembly. Now including the Electroless Nickel Bolt Carrier Group and the 15" LPSN M-LOK Quad Rail. The Complete 16" M-LOK Rifle Upper Assembly (5.56mm) is built for performance and reliability with innovative components to function no matter the situation.

Features:

- Forged 7075 T6 aluminum upper receiver.

- 15" LO-PRO SLOPE NOSE (LPSN15) FREE FLOAT QUAD RAIL M-LOK­™ with “True Fit Technology™"

- 16” 4150 chrome lined, 1:8 twist, button rifled, M4 extension/M4 feed ramps with mid length gas systems and lo-pro gas block.

- Electroless Nickel(EN) M16 bolt carrier group.

- Ambidextrous Battle Latch Charging Handle Assembly (ABL/CHA).

- FATman Hex Brake

- A.R.M.S. 71L Flip Up sight set.

Limited Lifetime Warranty

In stock
Item Price: $1,049.00

Code: Rifle - MLOK Complete Upper

4lb - 11.5oz
Complete M-LOK Rifle Upper Assembly





Flat top upper receiver, complete. Mil-spec type III hard coat anodizing. Precision machined to M16/M4 specs. M4 feedramps. Includes: Forward assist assembly, ejection port cover assembly. Also including the A.R.M.S. ® #71L series of Front and Rear Sights with STEEL APERTURES. They are designed to allow attachment to all Universal Dovetail and Weaver style Rails. Both are made from durable, metal-reinforced polymer and are a good option when seeking a quality sight. Both are .600" when in the folded position, from the top of the receiver. Not for Dovetail Gas Blocks.

Complete M-LOK Rifle Upper Assembly





The 15" LO-PRO SLOPE NOSE M-LOK Free Float Quad Rail was developed to accommodate the features of our 7.5" LPSN quad rail to a longer 15" version. The LPSN15 M-LOK was inspired by beneficial features that shooters have requested and demanded from us and other manufacturers. M-LOK is a modular locking accessory mounting system that is a direct attachment method for hard mounting accessories to a negative space mounting point. Designed by Magpul Industries as an evolution of theMOE® slot system used since 2007.

Complete M-LOK Rifle Upper Assembly

The 2 large (FAT) ventilated baffle sections and chambers create the compensation needed to reduce the overall recoil felt by the shooter. The FATman Hex Brake includes two top ports machined at a 20 Deg. forward directed angle. These top ports help direct the energy of the spent gas in a manner that maintains a flat consecutive result shot after shot. The design of the FATman Hex Brake allows the first chamber wall to sit as close to the barrel crown plane as possible. This design element was included to maintain the full accuracy of the barrel.

Complete M-LOK Rifle Upper Assembly

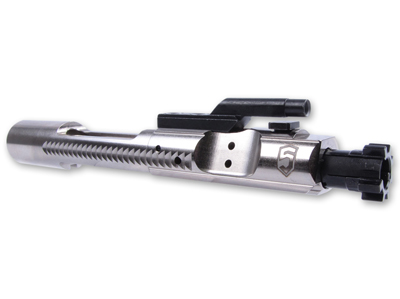

Phase 5’s Electroless Nickel (EN) Mil-spec M-16 bolt carrier features a heat treated and chrome lined inner. The complete bolt carrier group includes cam pin, firing pin, gas key, and bolt with power extractor spring. All bolts are HPT/MPI tested.

Complete M-LOK Rifle Upper Assembly

Our Ambi Battle Latch/Charging Handle Assembly (ABL/CHA™) incorporates several structural and functional improvements, 7075 Aluminum, including a truly ambidextrous design ideal for left-handed users.
